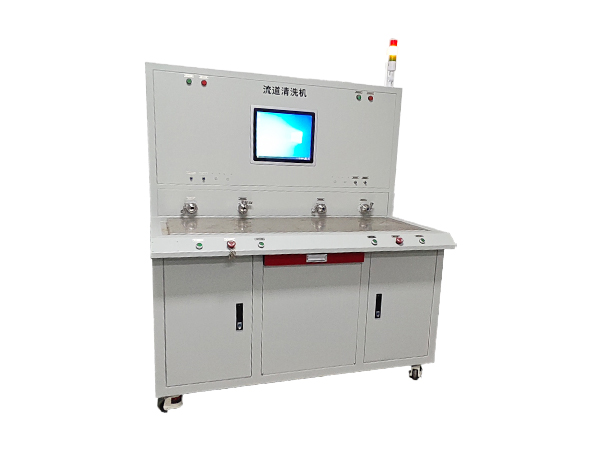

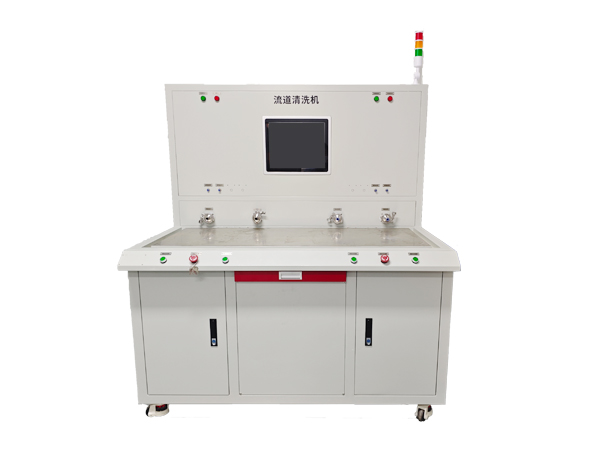

The flow channel cleaning test machine is composed of a control part, a cleaning cabinet and a test chamber. The overall bottom is equipped with universal casters, which facilitate the movement and fixation of the cabinet. The flow channel cleaning test machine uses a high-pressure centrifugal pump water pressure system as the power source, improving stability and reliability. At the same time, the pressurization speed and control accuracy have been further enhanced. It is suitable for the internal cleaning of various liquid cooling plates, cooling water pipes, special pipes, cold plate assemblies and other liquid cooling products to prevent impurities from flowing to other components and affecting the overall performance of the product.
| Cleaning Pressure | 0.2-0.6MPa |
| Pressure Accuracy | ±0.5%FS |
| Flow Accuracy | 1-12L/min, Adjustable |
| Filter Accuracy | ±1%FS |
| Flow Range (LPM) | 0.22µ, 1µ, 5µ |
| PH Measurement Range | 0-14PH |
| Measurement Accuracy | ±1%FS |
| Resolution | 0.01ph |
| Conductivity Measurement Range | 0-20µs/cm |
| Measurement Accuracy | ±1%FS |
Resolution | 0.01µs/cm |
| Temperature Range | Room Temperature -65℃ |
| Number of Interfaces | 2 Channels |
| Flushing Method | Forward Flushing, Back Flushing, Pulse Flushing, Cavitation |
| Equipment Interface Type | Chuck |
| Test Medium | Pure Water |
| Power Supply Voltage | AC380V,50HZ,10KW |
| Test Cabinet Size | 1500mm×1200mm×1700mm |
| Power Cabinet Size | 1500mm×1500mm×1700mm |
1. The system is controlled by Siemens PLC, with advanced control principles. It can precisely control the pressure accuracy. The entire test process can be automatically controlled by a computer, and the test process can also be manually controlled through the buttons on the control cabinet.
2. The dedicated testing software is mature, stable and defect-free. It can display the pressure-time curve in real time, provide real-time data display, print the experimental report, be compatible with OFFICE office software, and the test report can be designed according to customer requirements.
3. This liquid cooling plate flow channel cleaning machine has an automatic power-off protection function. After power failure, the system automatically releases pressure and terminates the test, maximizing the safety of operators and equipment.
4. The hydraulic system is used as the power source, improving stability and reliability. At the same time, the pressurization speed and control accuracy have been further improved.
5. All high-pressure valves, pipe fittings and joints are made of domestic high-quality products, ensuring the pressure resistance level and reliable quality.
