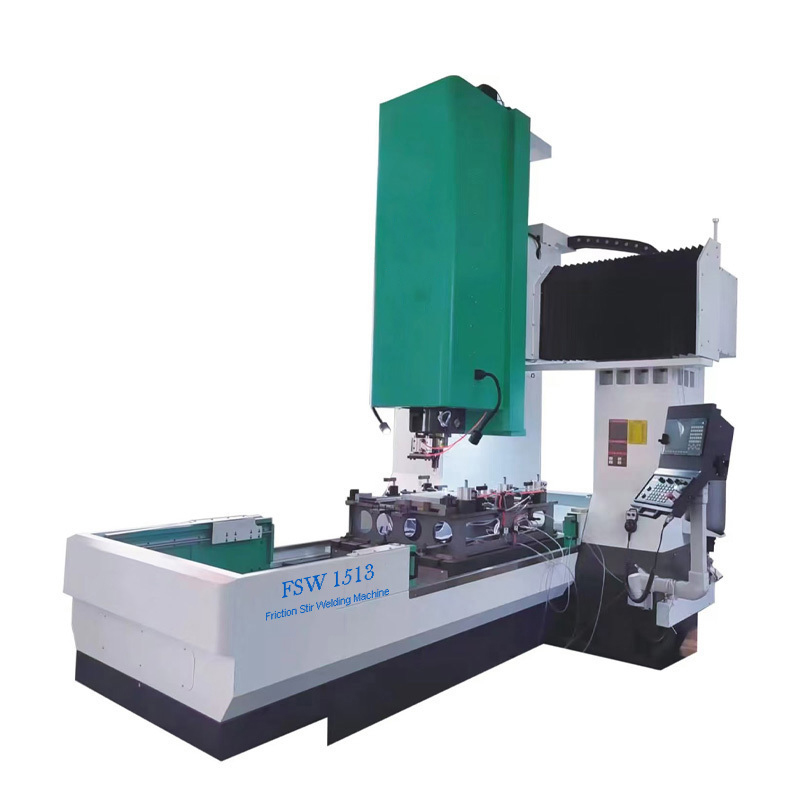

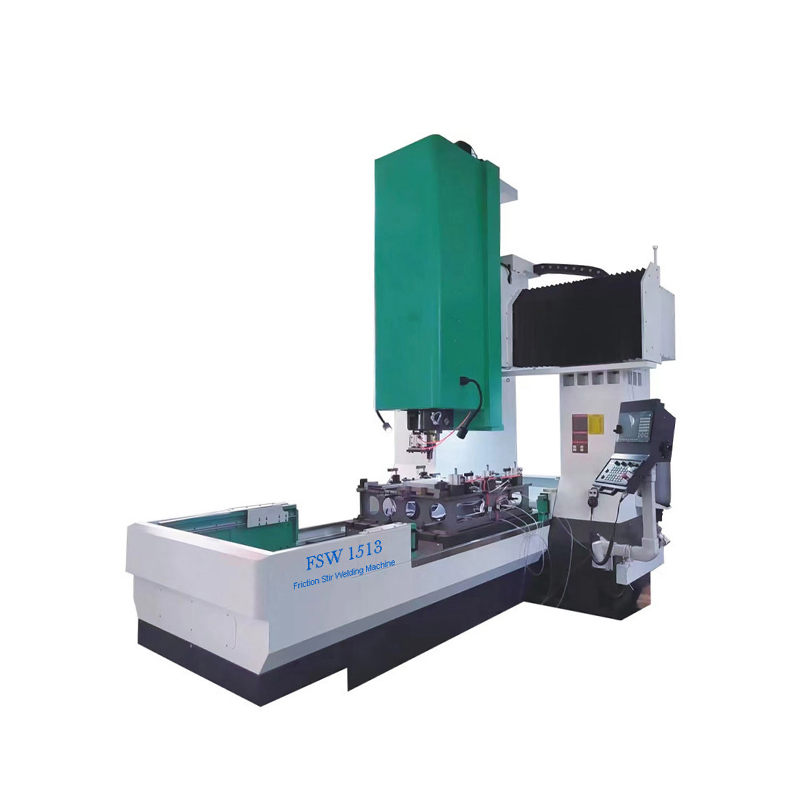

·The FWS machine use gantry, motor head, widen the working platform, and greatly improve the space utilization rate;

·The big friction stir welding machine has good rigidity, and simple operation;

·Widely used in scientific research, heat sink, water cooled plate and other friction stir welding, especially for long straight wall parts welding;

·Low cost production advantages, no need to open the groove, welding does not need to protect gas and filling materials, friction stir welding direct production cost is only 1/16 of MIG fusion welding, greatly saving production costs;

·High efficiency production capacity, welding seams are welded together, no need for multi-layer and multi-pass welding.  High welding speed up to 1000mm/min;

·Lori gantry friction welding machine advantages: high quality products, welding involved in small stress, shrinkage, small deformation, no element burned.

1. The microstructure change of the heat affected zone of the welded joint is small.  The residual stress is relatively low, and the welding workpiece is not easy to deform;

2. Lori automatic gantry FSW machine can complete a long weld, large section, different positions of the welding joint height;

3. The operation process is convenient to realize mechanization and automation, simple equipment, low energy consumption, high efficiency, and low requirements for the working environment;

4. No need to add wire, andn no need to remove oxide film before welding aluminum alloy, magnesium alloy, titanium alloy, no need to protect gas, low cost;

5. Welding hot crack sensitive materials, suitable for dissimilar materials welding, such as aluminum copper bonding, aluminum magnesium bonding, etc.;

6. Welding process safety, no pollution, no smoke, no radiation, etc.

7. The gantry friction stir welding is Lori high-end CNC welding equipment. The machine tool has strong rigidity and stable operation.

8. The main body of friction stir welding equipment is made of high quality castings, which are treated by double tempering and have good precision.

9. The fast loading and unloading components of this gantry FSW machine increase the productivity of the feeding system.
